WHAT IT DOES

RC servos are prepackaged motion systems containing a DC motor, gearbox, and feedback control. They provide a simple way of generating repeatable motion, and are typically found in radio controlled (hence RC) model vehicles such as cars and airplanes. This control board is able to set the position of up to 8 RC servos.

WHAT YOU NEED

A complete system requires this control board and a seperate power supply ranging between five to six volts. RC servos draw more power than can be provided by the onboard regulator, but won't withstand the high voltage provided by Fabnet.

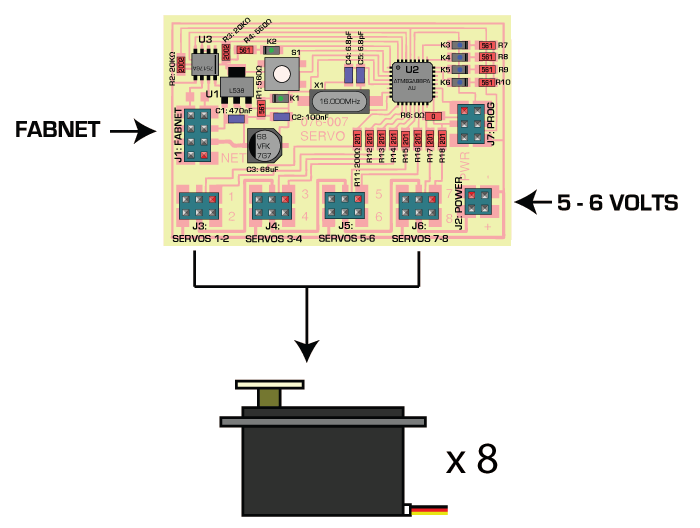

SYSTEM OVERVIEW

HEADER PINOUTS

J1	J2	J3-J6	J7
FABNET	SERVO POWER	SERVOS	PROG.
